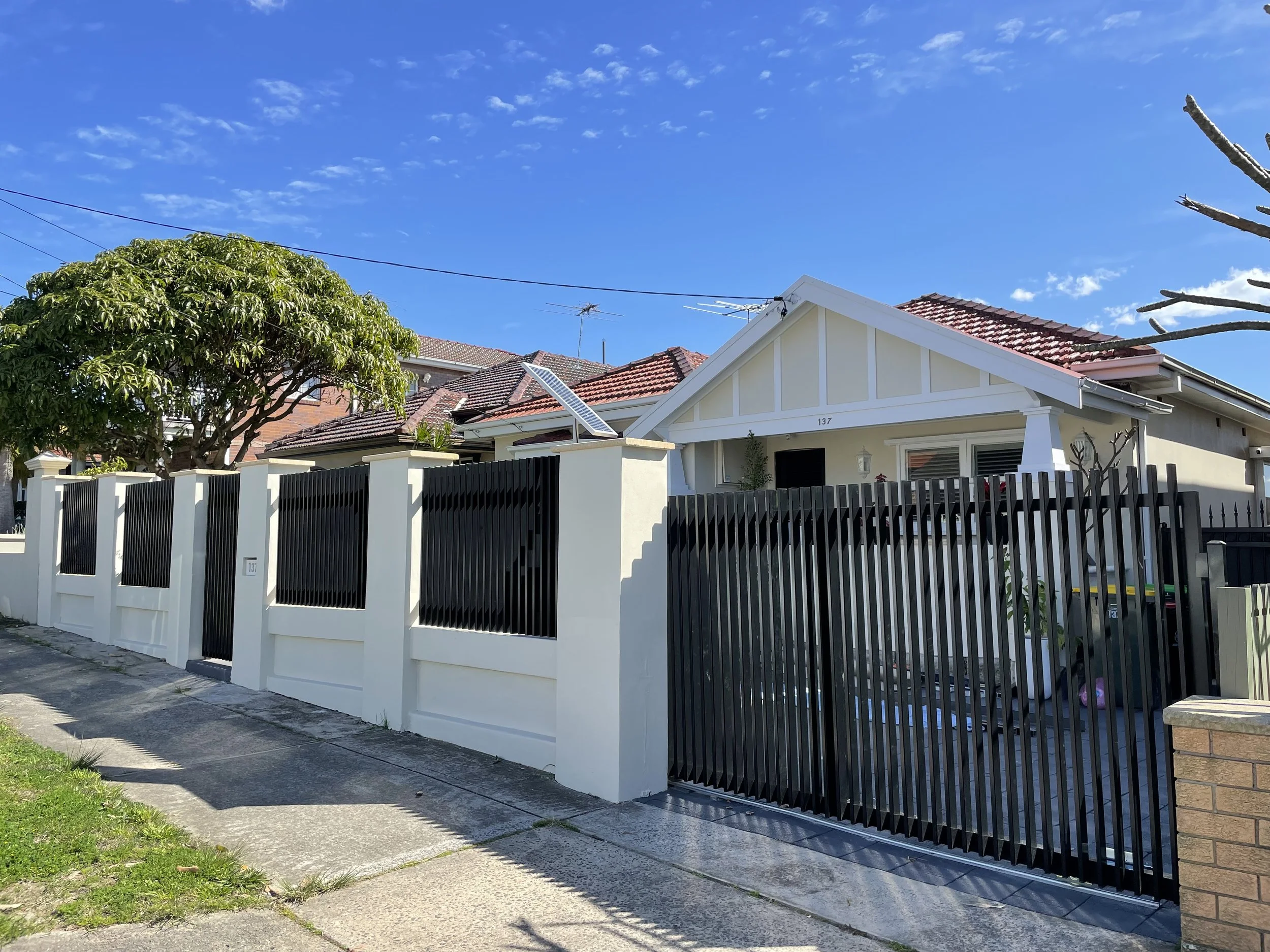

Vertical Aluminium Batten Fence and Solar Sliding Gate Installation in Earlwood, NSW
Looking for a modern aluminium fence and automated sliding gate for a sloping driveway? This featured project in Earlwood, NSW showcases how Comfyard designed and installed a custom powder-coated aluminium batten fence, matching pedestrian gate and solar-powered sliding gate to maximise security, convenience and street appeal. The project demonstrates our ability to deliver tailored solutions for challenging sites without compromising on quality or aesthetics.
Project Summary
Service: Vertical Aluminium Batten Fence and Gates Installation
Location: Earlwood, NSW
Property Type: Residential
Project Duration: 4 Days
Fence Length: Approximately 10.1 metres (including gates)
Automated Sliding Gate: 3.15 m wide
Pedestrian Gate: 0.88 m wide
Materials: Powder-Coated Aluminium Xpress Battens
Estimated Investment: $15,000–$17,000
Completion: June 2022
The Client's Goal
The homeowner wanted to install modern vertical aluminium batten fence and gates that would improve privacy, require minimal maintenance and complement the home's contemporary design. A highly space-efficient automated sliding gate would offer superior high-wind stability and provide enhanced security.

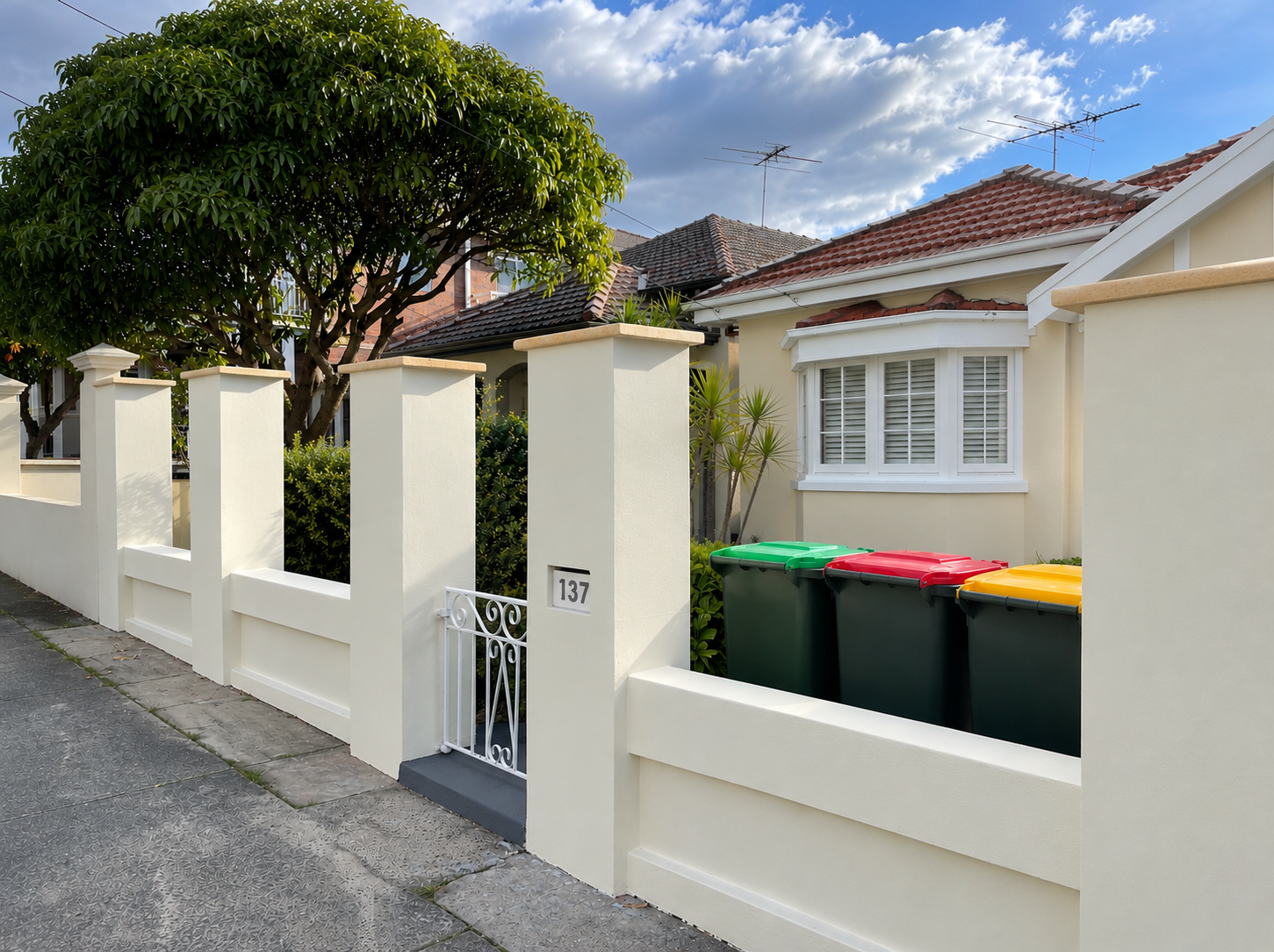

Rendered brick wall and pillars prepared for fence panel installation

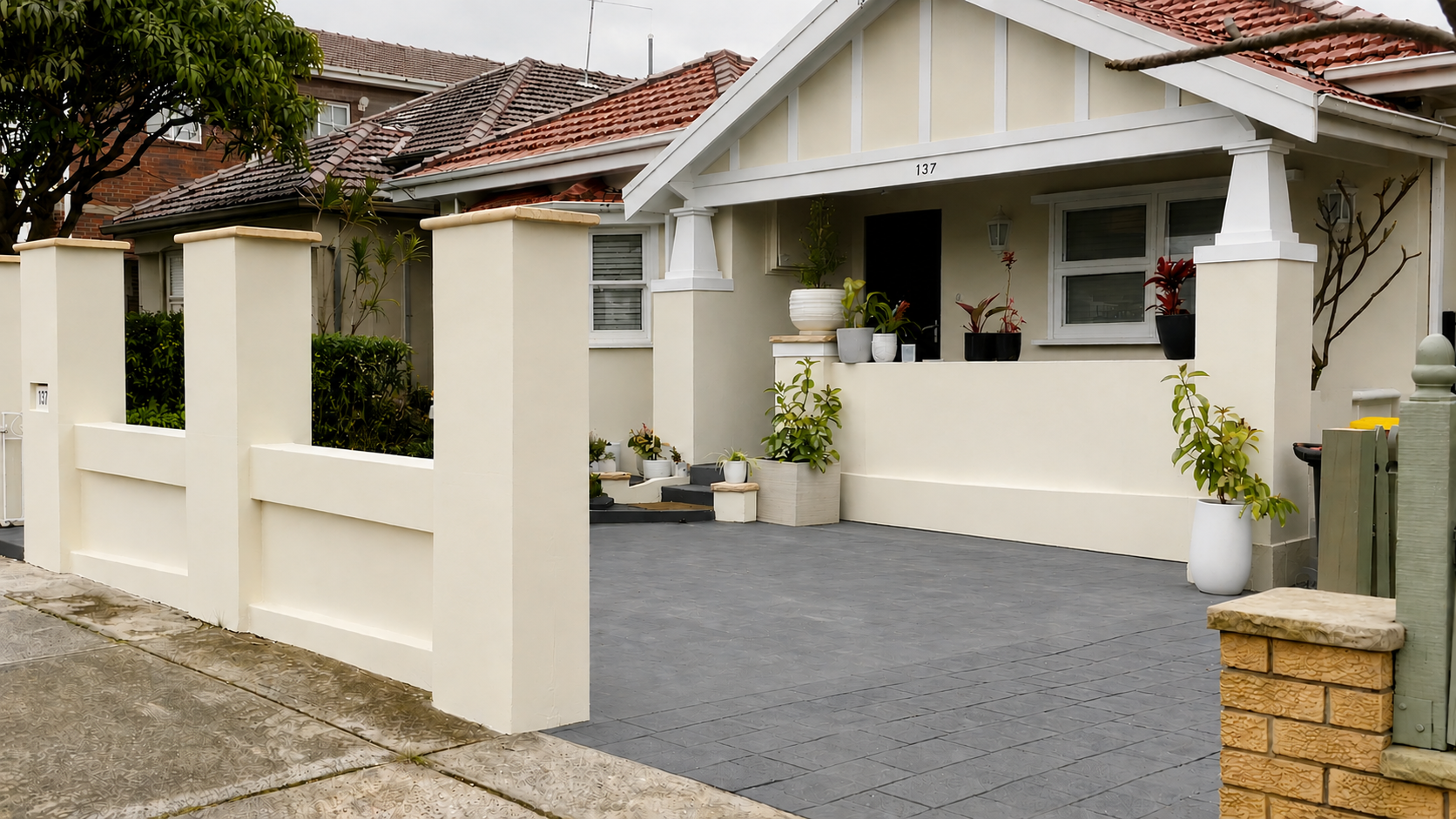

Sloping driveway and small front yard space

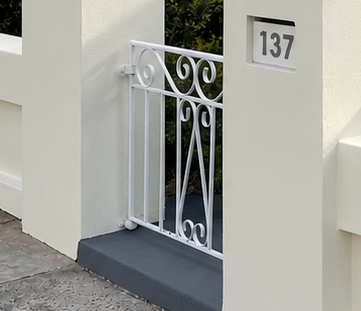

Old pedestrian gate requiring replacement
Challenges
This project presented several unique challenges that required careful planning and custom engineering.
Steep sloping driveway – The sliding gate had to follow the natural slope of the driveway while maintaining a perfectly level top line for a clean, modern appearance.
Limited front yard space – The property had a small frontage with insufficient room for swing gates, making a sliding gate the only practical solution.
No access to mains power – The driveway and courtyard had already been finished with concrete, making it impractical to install underground electrical cabling for a conventional gate motor.

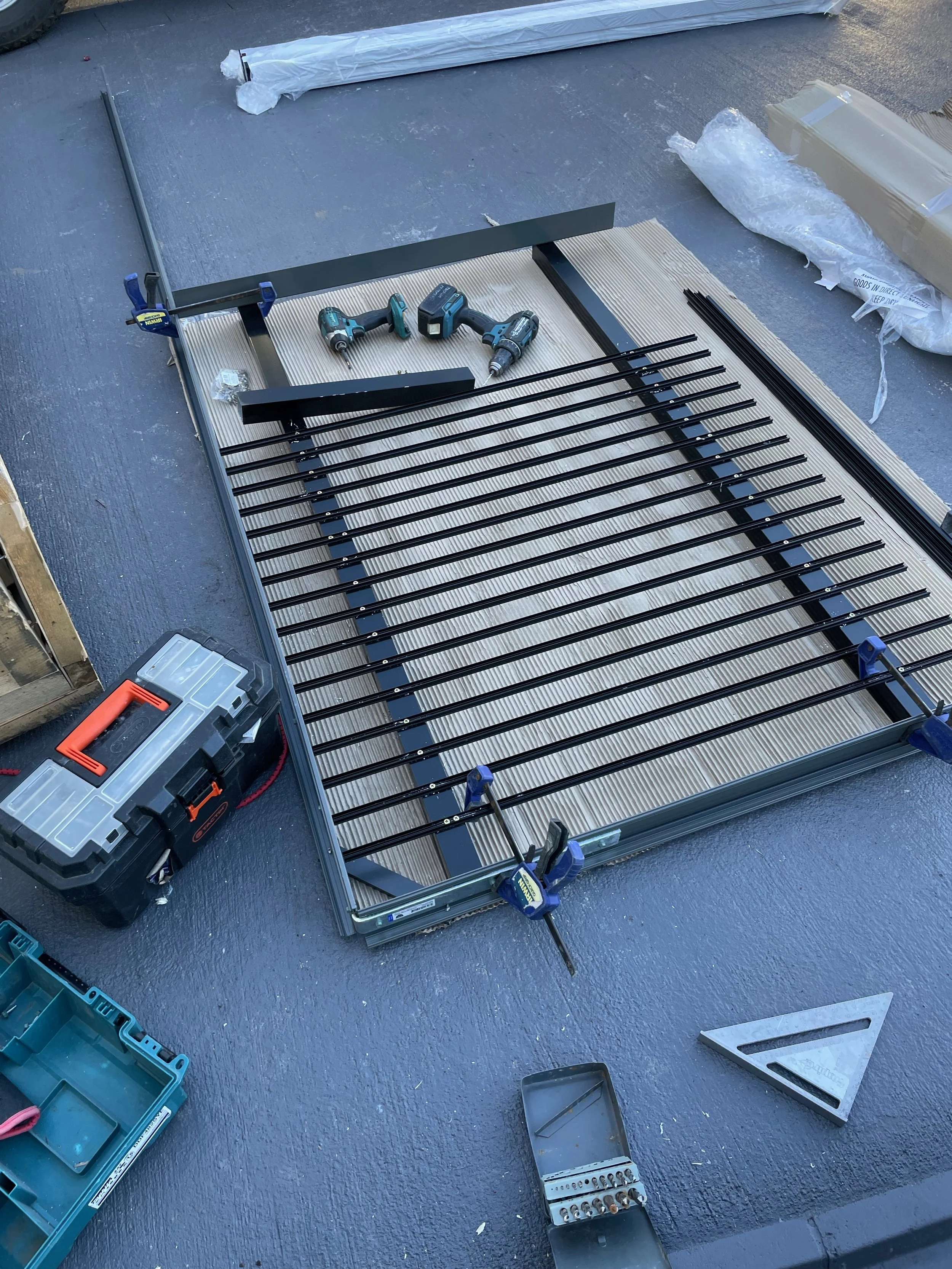

Fence frame assembley

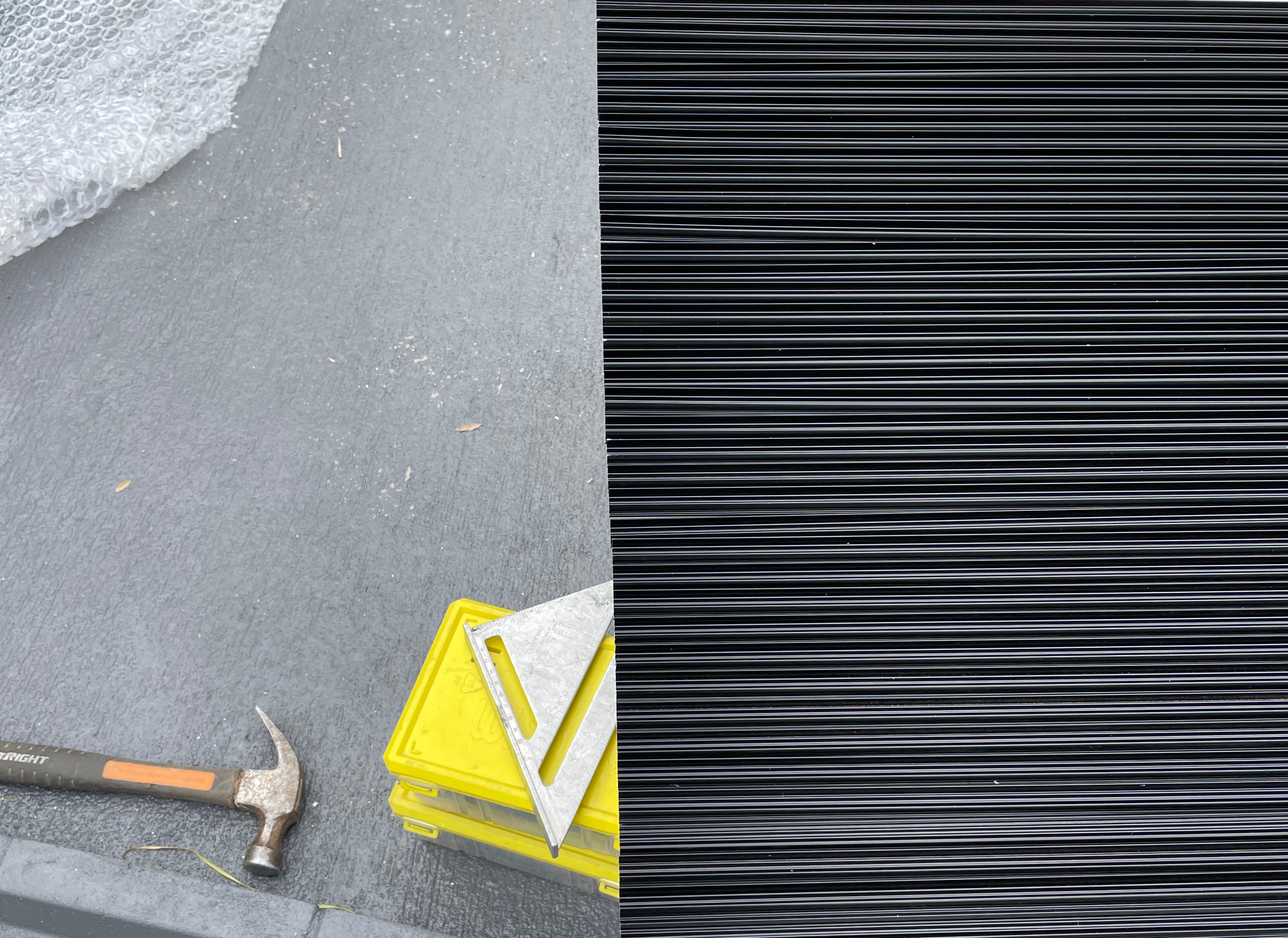

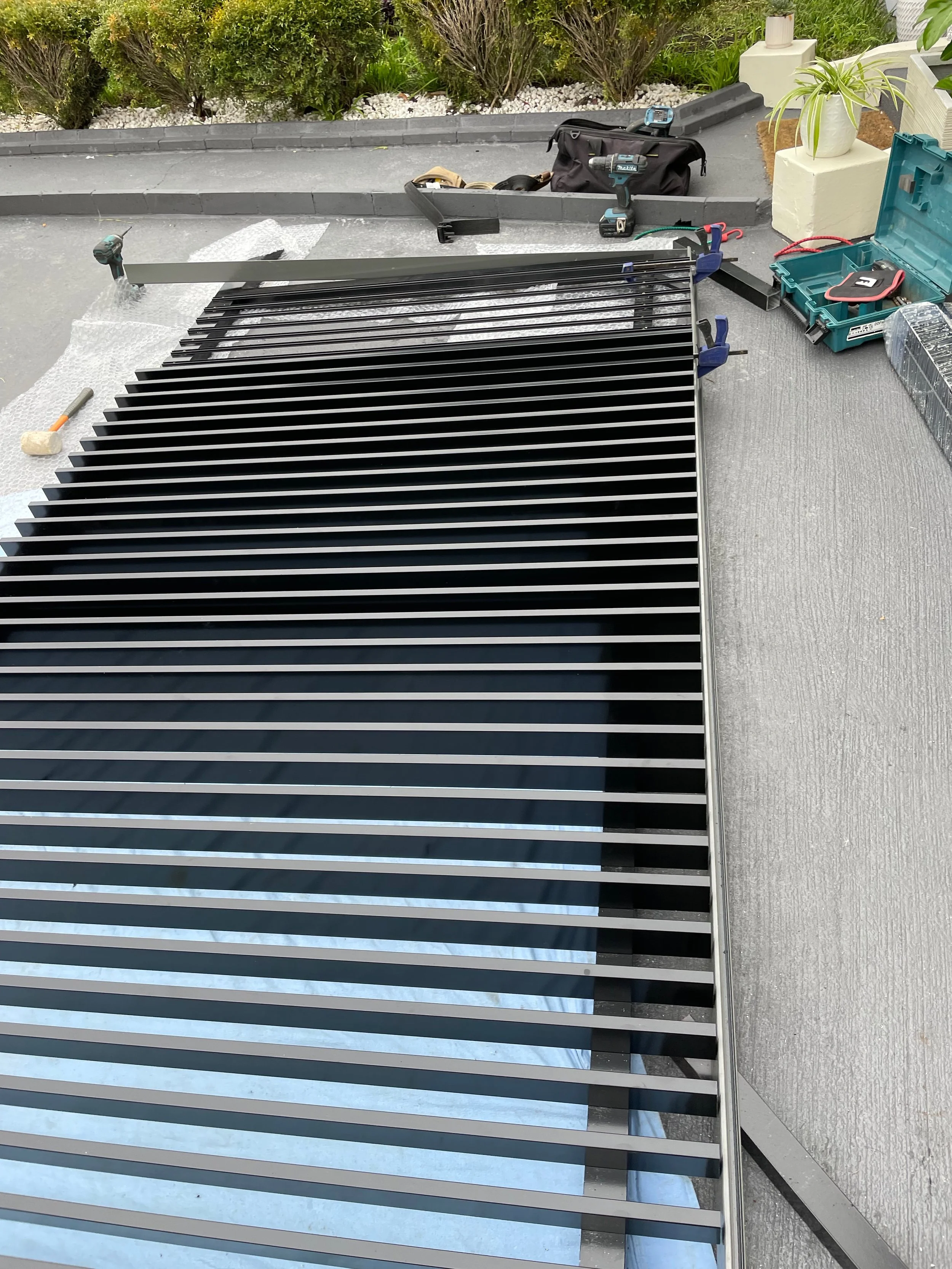

Sliding gate preparation
Our Solution
To overcome these challenges, we designed and installed a fully integrated fencing and gate system tailored to the property's layout.
Manufactured and installed custom powder-coated aluminium batten fence panels.
Installed a heavy-duty sliding gate track and custom sliding gate.
Fitted a matching pedestrian gate to create a consistent architectural appearance.
Installed a solar-powered gate automation system, eliminating the need for underground electrical wiring.
Carried out final adjustments, alignment and testing to ensure smooth, reliable gate operation and a flawless finish.
Premium Materials Used
We selected high-quality materials and hardware to deliver a durable, low-maintenance solution.
Powder-coated aluminium Xpress batten panels (65 × 17 mm battens with 50 mm spacing)
Custom powder-coated aluminium sliding gate
Matching aluminium pedestrian gate
Proteos 500 Italian-made solar gate motor
Solar panel with dual 9Ah backup batteries
Heavy-duty steel sliding gate track
Nilan sliding guide block
D&D Technologies lockable latch
D&D heavy-duty gate hinges
Stainless steel fixings and premium installation hardware

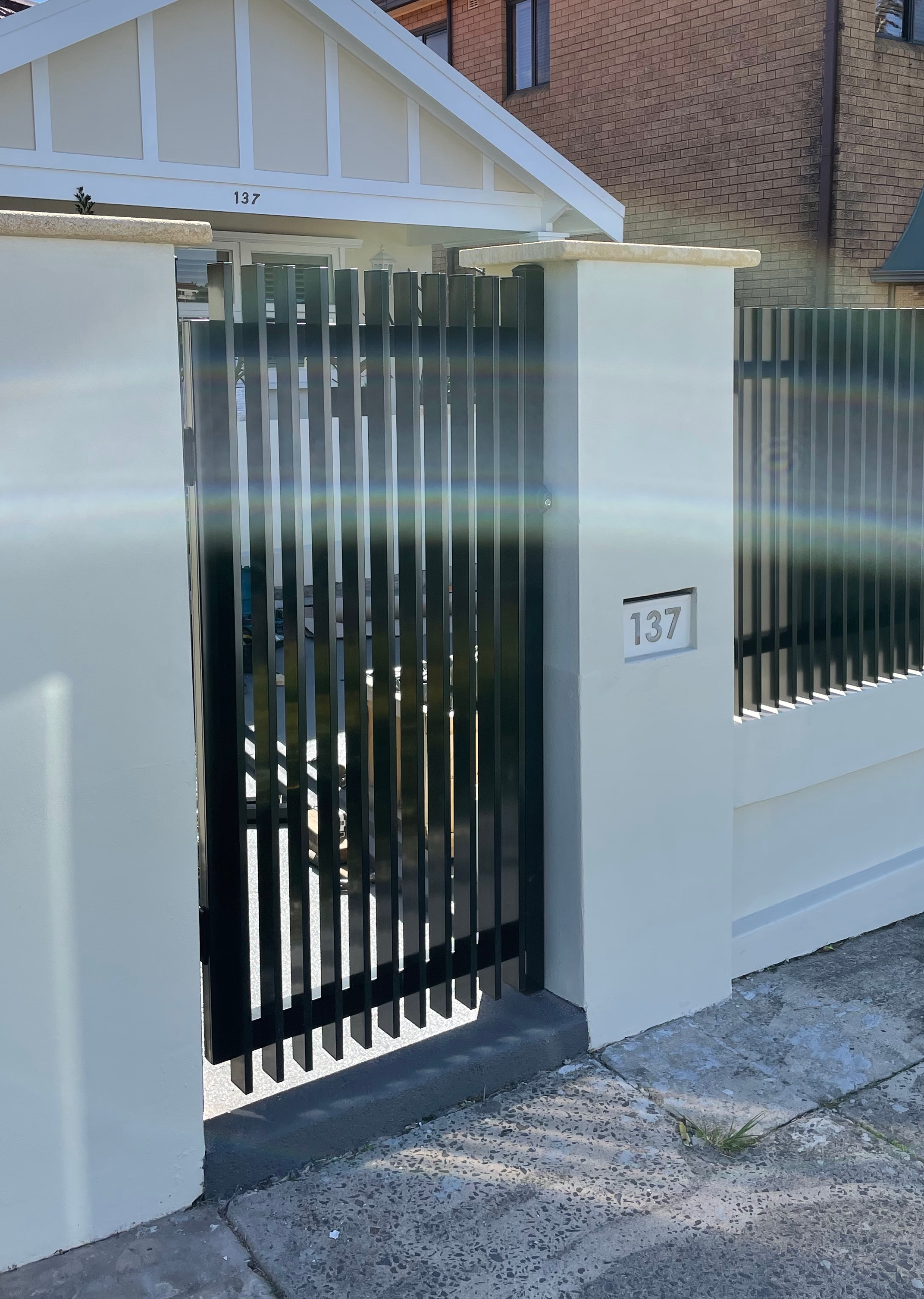

Matching aluminium pedestrian gate
Why This Solution Worked
The completed project provides the homeowner with a modern entrance that combines security, convenience and long-term reliability. By using a solar-powered automation system, we avoided costly excavation through the existing concrete while delivering fully automatic gate operation. The custom-designed sliding gate follows the sloping driveway without compromising the clean horizontal lines of the fence, resulting in a practical solution that enhances both the functionality and street appeal of the property.
Frequently Asked Questions
-
The property had a narrow front yard with limited space for vehicle access. A sliding gate was the most practical solution, allowing the gate to open parallel to the fence without reducing the available parking area.
-
Yes. Sliding gates can be custom-designed for sloping driveways. For this project, the bottom of the gate was fabricated to follow the driveway's gradient while the top remained perfectly level, creating a clean, modern appearance and ensuring smooth operation.
-
The driveway and front courtyard had already been completed with concrete, making it impractical to install underground electrical cables. A solar-powered automation system provided a reliable and cost-effective solution without the need for excavation.
-
Yes. Modern solar-powered gate systems are designed for reliable daily use. They include rechargeable batteries that store energy from the solar panel, allowing the gate to continue operating during cloudy weather and at night.
-
Aluminium batten fencing is durable, lightweight and resistant to rust. It requires very little maintenance, never needs repainting and provides excellent privacy while giving the property a modern architectural appearance.
Washing the fence occasionally with water and a mild detergent is usually all that's needed to keep the powder-coated finish looking its best.
-
Yes. Aluminium fencing and gates are available in a wide range of powder-coated colours and finishes to complement the style of your home.
-
The installation time depends on the size and complexity of the project. Most residential fencing and automated gate installations are completed within several days once all custom-made components have been manufactured.
-
In many cases, yes. If the gate is structurally suitable, it can often be upgraded with an automatic gate motor. We assess each property and recommend the most appropriate automation system.
-
Yes. Comfyard designs and installs custom aluminium fencing, sliding gates, pedestrian gates and automated access systems across Sydney, Brisbane and their surrounding suburbs.
-
A custom sliding gate combined with a solar-powered gate motor is often the ideal solution. It avoids the cost of cutting existing concrete to install electrical cables while providing smooth, automatic operation. By fabricating the gate to match the driveway's slope, it's possible to achieve both reliable performance and a clean, level appearance.
