Rooftop Aluminium Slat Privacy Screen Installation – Randwick, NSW

Comfyard was engaged by a strata management company to design and install a custom aluminium slat privacy screen system on the rooftop of a residential apartment building in Randwick, NSW.

The objective was to improve privacy and security while creating a modern architectural finish that complemented the building's rooftop communal area. Due to the elevated location and structural requirements, the project demanded careful planning, specialised installation techniques and strict adherence to safety procedures.

The completed installation features powder-coated aluminium slat screens, custom structural supports and seven matching access gates, providing a durable, low-maintenance solution designed to withstand Australia's harsh rooftop conditions.

Project Summary

Service: Aluminium Slat Privacy Screen

Location: Randwick, NSW

Client: Residential Strata

Project Type: Rooftop Privacy Screening

Project Duration: 2 weeks

Material: Powder-Coated Aluminium

GatesInstalled: 7 Access Gates

Approximate Project Value: $38,000–$42,000

Completion: November 2021

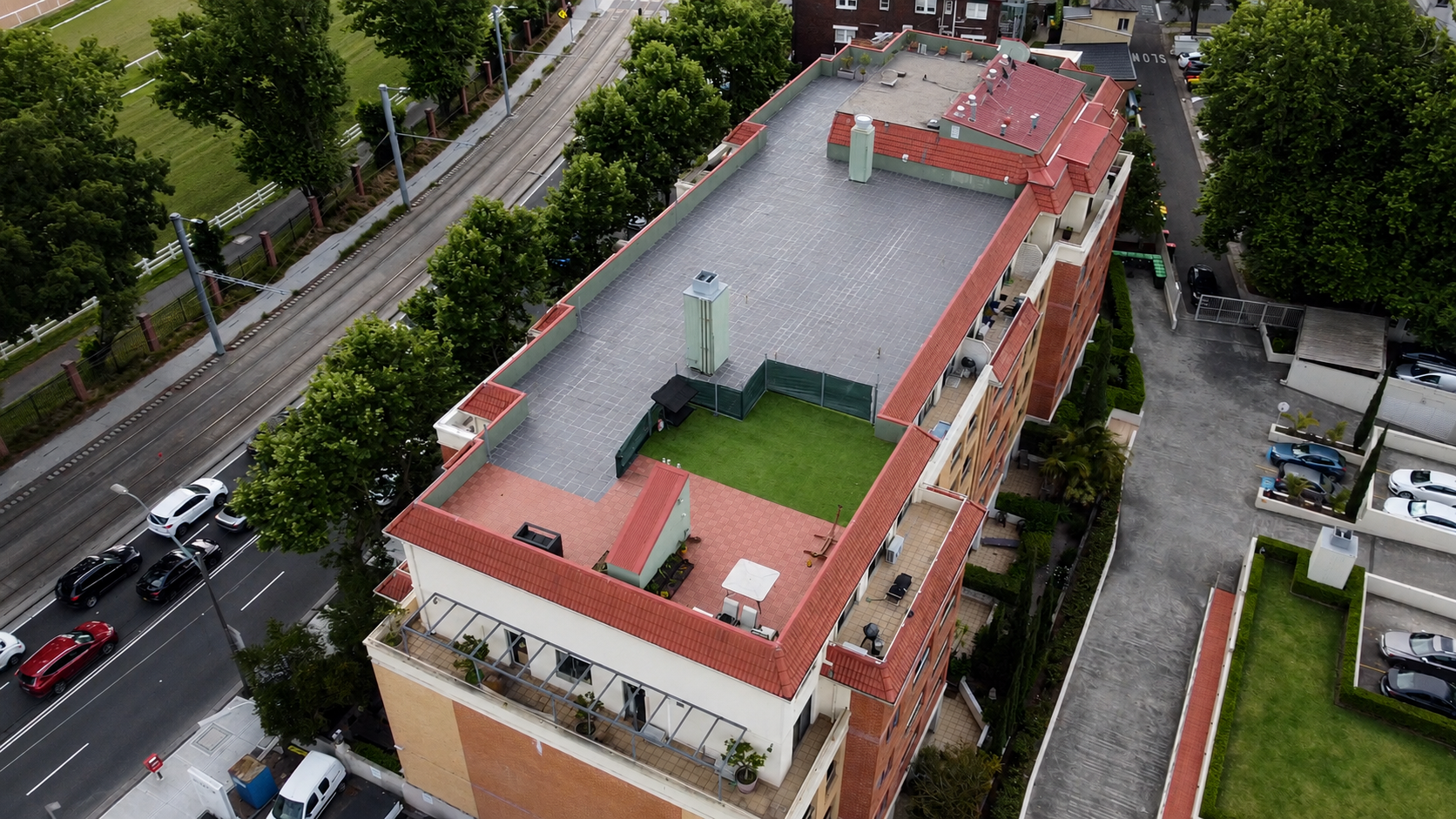

Aerial view of a multi-story building with a large flat rooftop, surrounded by trees, parked cars, and adjacent streets. The rooftop includes a small grassy area, an outdoor seating space with a white umbrella, and various HVAC units.

The Client's Goal

The strata committee wanted to transform the rooftop into a safer and more attractive communal space by installing privacy screens around rooftop plant equipment and service areas.

The solution needed to:

Improve privacy
Enhance the appearance of the rooftop
Allow airflow
Provide easy maintenance access
Be corrosion resistant
Withstand strong coastal winds
Require minimal ongoing maintenance

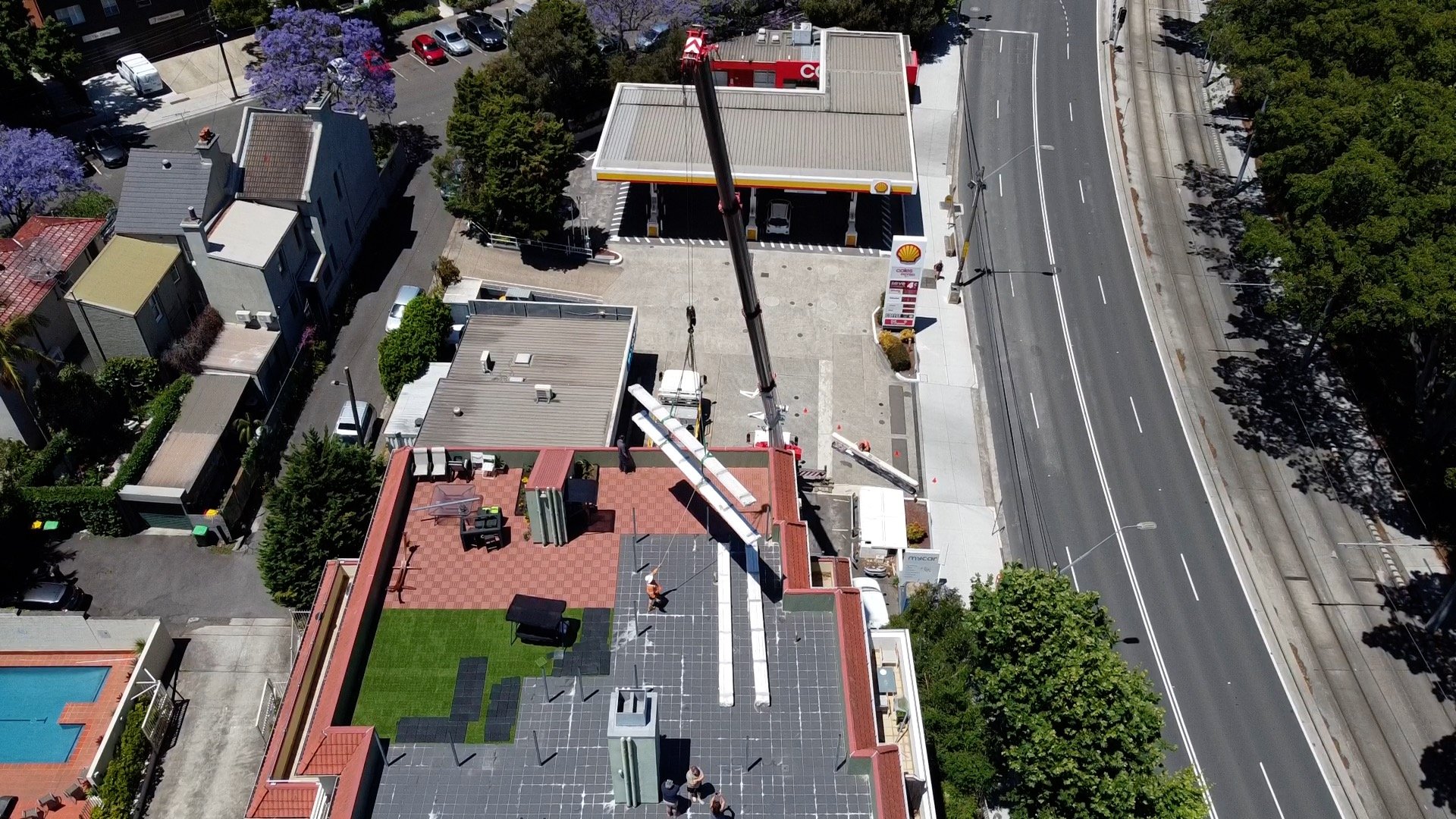

Aerial view of a Shell gas station nearby multi-story building with a crane lifting aluminium panels and posts on the rooftop of this building, adjacent to a sidewalk and busy street with trees.

Challenges

This commercial project presented several technical and logistical challenges.

Working at Height

All materials and equipment had to be safely transported to the rooftop before installation. Working several storeys above ground required careful planning and strict compliance with workplace safety procedures.

Wind Exposure

The rooftop is exposed to strong coastal winds, requiring a structurally engineered installation capable of withstanding high wind loads while maintaining long-term stability.

Structural Mounting

The aluminium screens could not simply be fixed to the roof membrane. Custom galvanised steel brackets and structural supports were installed to ensure strength while protecting the building's waterproofing system.

Multiple Access Points

The project required seven matching aluminium access gates that integrated seamlessly with the privacy screens while allowing maintenance personnel safe and convenient access to rooftop equipment.

Delivering all materials to the roof of a six-storey building

Due to the building’s structure, the crane could only be positioned on a section of ground with sufficient load-bearing capacity. Areas above the underground car park, building services, and the nearby service station were unsuitable for supporting the weight of a heavy mobile crane.

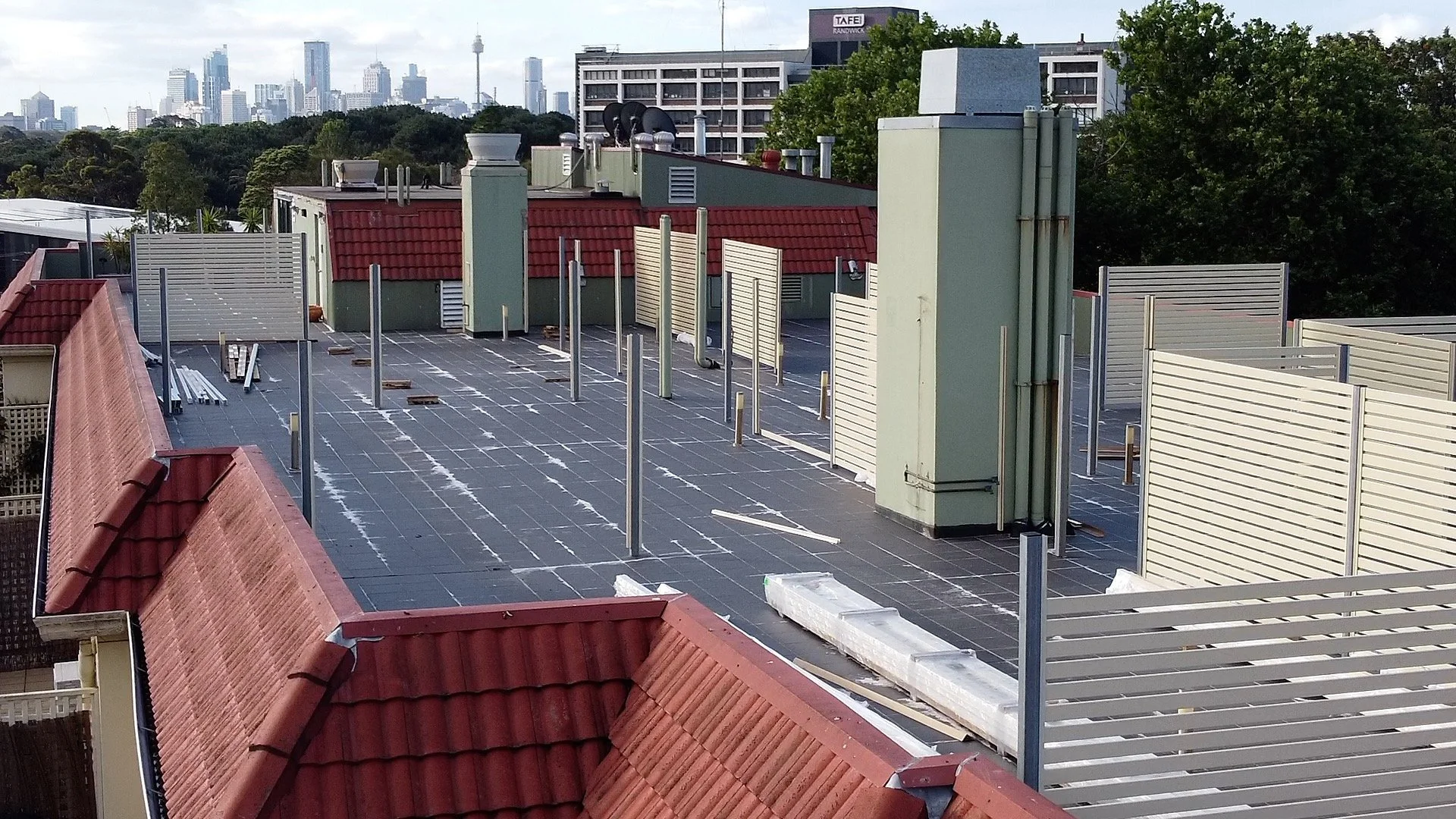

Rooftop terrace under construction with building walls and city skyline in background.

Our Solution

Comfyard designed and installed a complete aluminium privacy screening system specifically for the rooftop environment.

Our work included:

Site measurement and planning
Fabrication of custom aluminium slat screen panels
Careful planning and engineering assessment to identify a safe crane location with the necessary boom reach and lifting capacity.
Installation of heavy-duty aluminium posts
Installation of galvanised structural support angles
Installation of seven matching access gates
Precision alignment of all screen panels
Final inspection and quality assurance

The finished installation provides excellent privacy while maintaining airflow and a clean architectural appearance

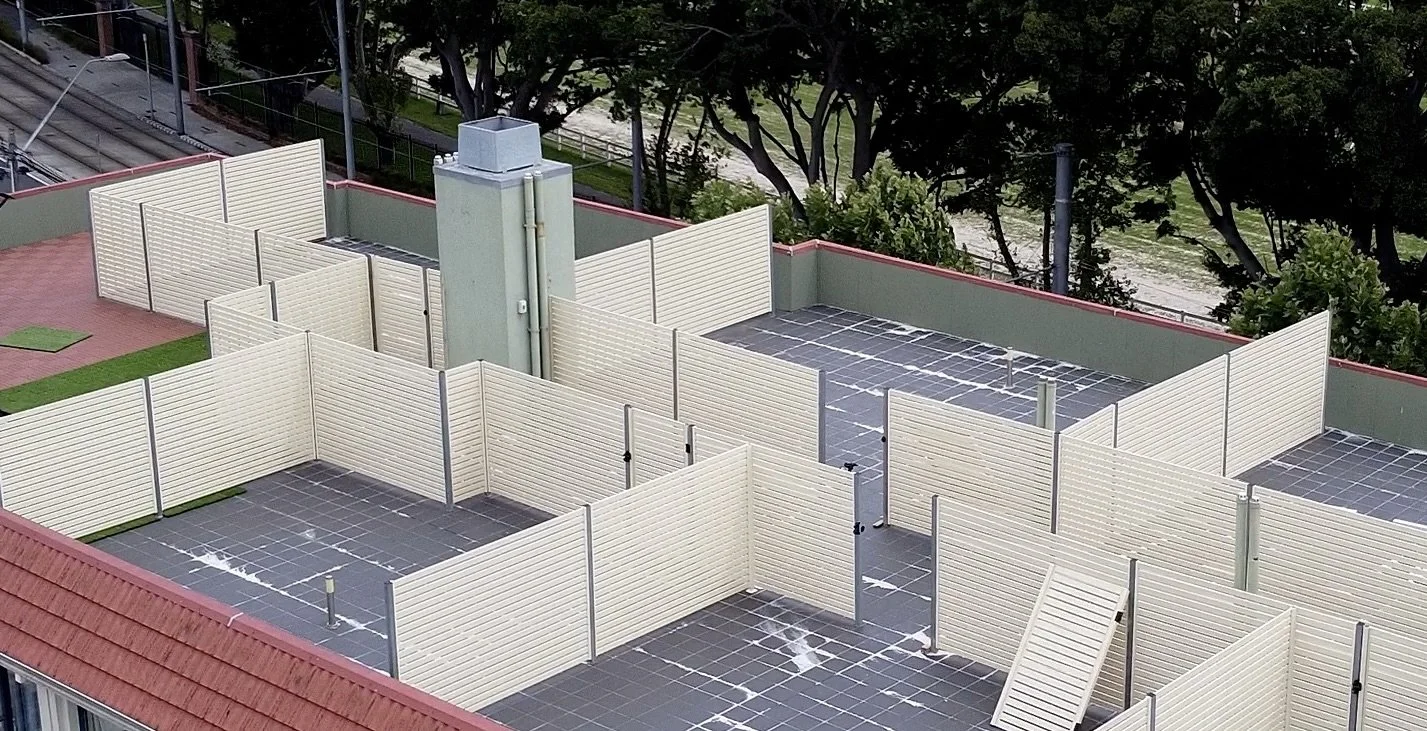

Empty rooftop area with cream-colored privacy screens, a tall vent, and rooftop tiles, surrounded by green trees and a red-roofed building.

Premium Materials Used

Only premium commercial-grade materials were selected to maximise durability and minimise maintenance.

QuickScreen powder-coated aluminium slats
QuickScreen side frames
QuickScreen end plates
QuickScreen spacers
Heavy-duty 50 × 50 mm aluminium posts
Galvanised steel support angles
Seven powder-coated aluminium access gates
Commercial-grade hardware
Stainless steel fixings suitable for outdoor environments

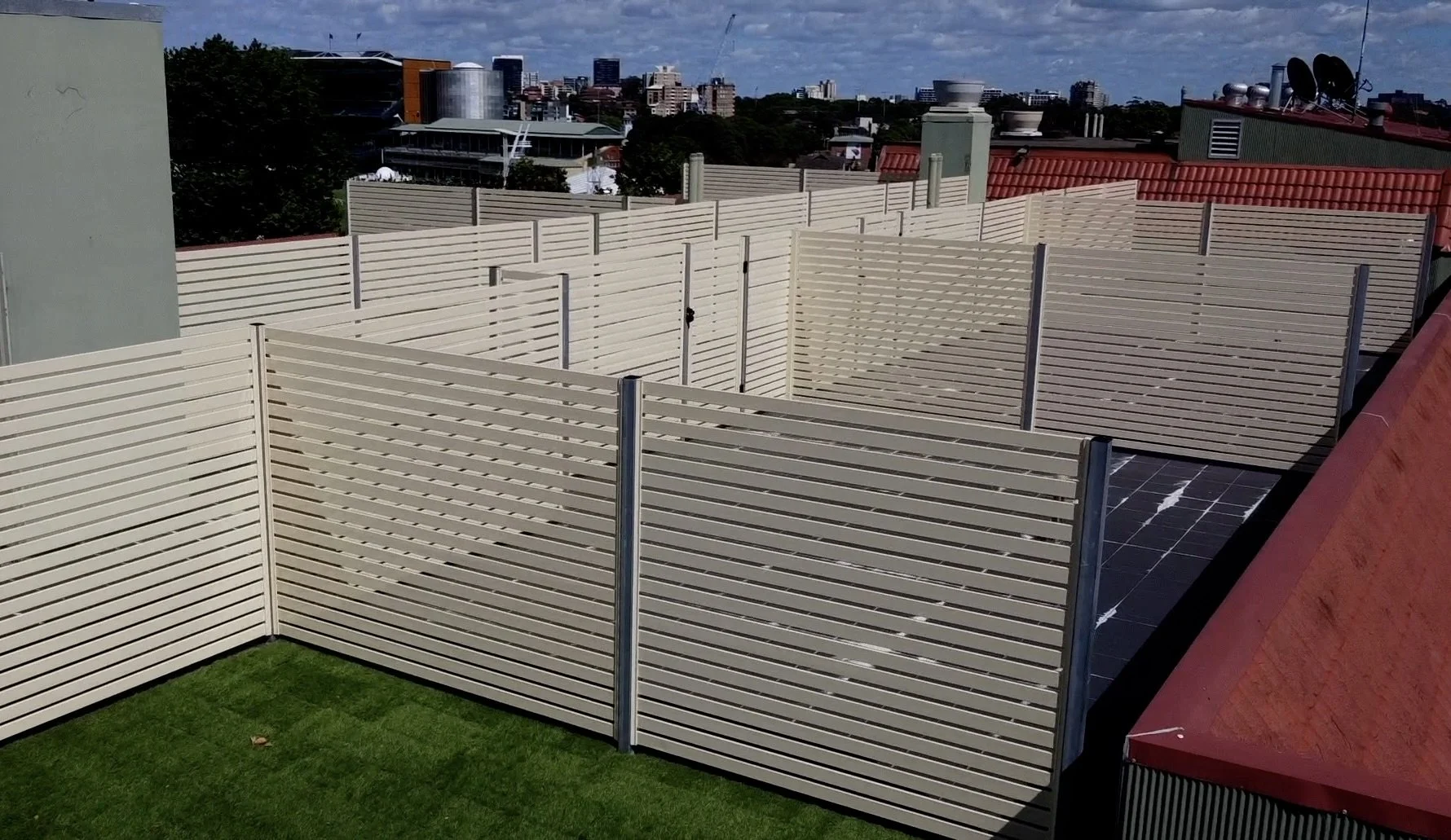

View of a rooftop area with cream-colored privacy fences, a small patch of green grass, and city buildings in the background under partly cloudy skies.

Why This Solution Worked

The completed installation successfully transformed the rooftop into a safer, more attractive and more functional space.

Benefits included:

Increased privacy
Improved rooftop appearance
Low-maintenance aluminium construction
Corrosion-resistant materials
Excellent airflow
Secure maintenance access
Long service life
Modern architectural design

Frequently Asked Questions

Aluminium is lightweight, corrosion resistant and requires very little maintenance. It performs exceptionally well in exposed rooftop and coastal environments.
Yes. Aluminium privacy screens can be custom designed for residential, commercial and strata buildings, provided they are installed with appropriate structural support and comply with the building's engineering requirements.
Access gates allow maintenance personnel to safely inspect and service rooftop equipment while maintaining a secure and visually consistent screening system.
Yes. Powder-coated aluminium is highly resistant to corrosion and is an excellent choice for coastal suburbs such as Randwick, Coogee and Maroubra.
Privacy screens can help reduce wind exposure while still allowing airflow through the slat spacing. The exact performance depends on the slat design, spacing and engineering requirements.
